Sold Out

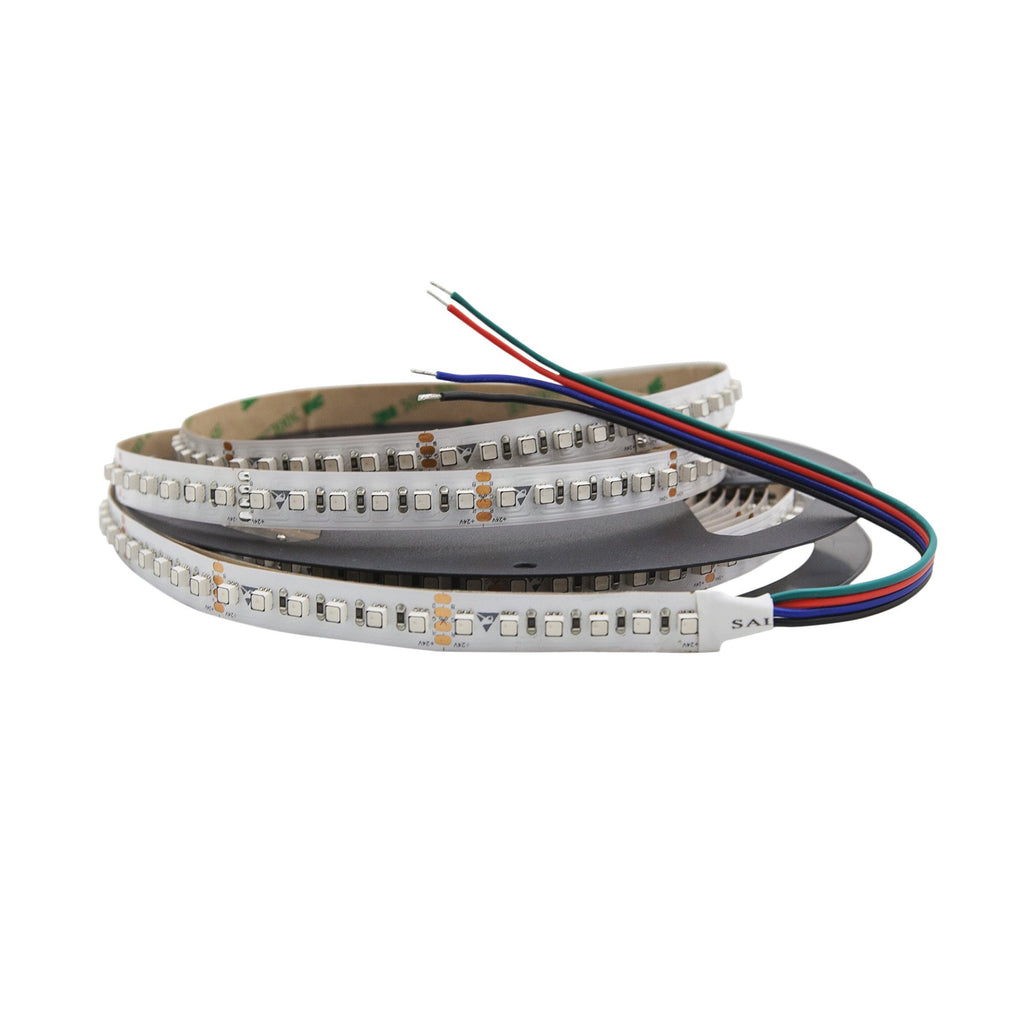

FlexLED RGB 24V 120 LED/Meter Indoor Bare Wire I24VRGB6005050
I24VRGB6005050
LED Tape
$218.45
High Output Color Changing LED strips 12V or 24V.
Now available in three different pixel pitch positions.
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof FlexLED must be mounted using silicone (not provided)
Controller, Power supply and Extension Cables sold separately
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB 120 24V |
| Kelvin | : | Color Changing |
| PCB Color | : | White |
| Current, Rating | : | 1.2 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 28.8W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP20 |
| Lumens @ Full | : | 2000 lm / meter |
| Lumen / Watt | : | 69 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10CM |
| LED Quantity | : | 120 LED / meter |
| Number of Contacts | : | 4 |
| LED Type | : | 3535 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
| Cutting Length | : | 6 LEDs 5CM |
