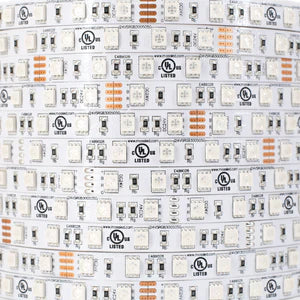

FlexLED RGB 24V 96 LED/Meter Indoor Bare Wire I24VRGB3005050

I24VRGB4805050
LED Tape
$192.19
$192.19

High Output Color Changing LED strips

Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof FlexLED must be mounted using silicone (not provided)
Controller, Power supply and Extension Cables sold separately

For specifications on Weatherproof and Waterproof product please download specifications sheet below.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGB 96
Kelvin : Color Changing
PCB Color : White
Current, Rating : 0.96 A / meter
Voltage : 24 VDC
Wattage : 23 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 1600 lm / meter
Lumen / Watt : 69
Lifetime* : 50,000 hours
Cutting Length : 6.25 CM
LED Quantity : 96 LED / meter
Number of Contacts : 4
LED Type : 5060
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 10MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : 200MP 3M
Wavelength A Red : 620 ~ 625nm
Wavelength B Green : 515 ~ 520nm
Wavelength C Blue : 465 ~ 470nm
  1. Specification Sheet

  2. UL Certificate of Compliance
