Ceiling Tile Panel Variable White 152MM X 1213MM
24VWW26CW601521213
LED Fixture
$162.33

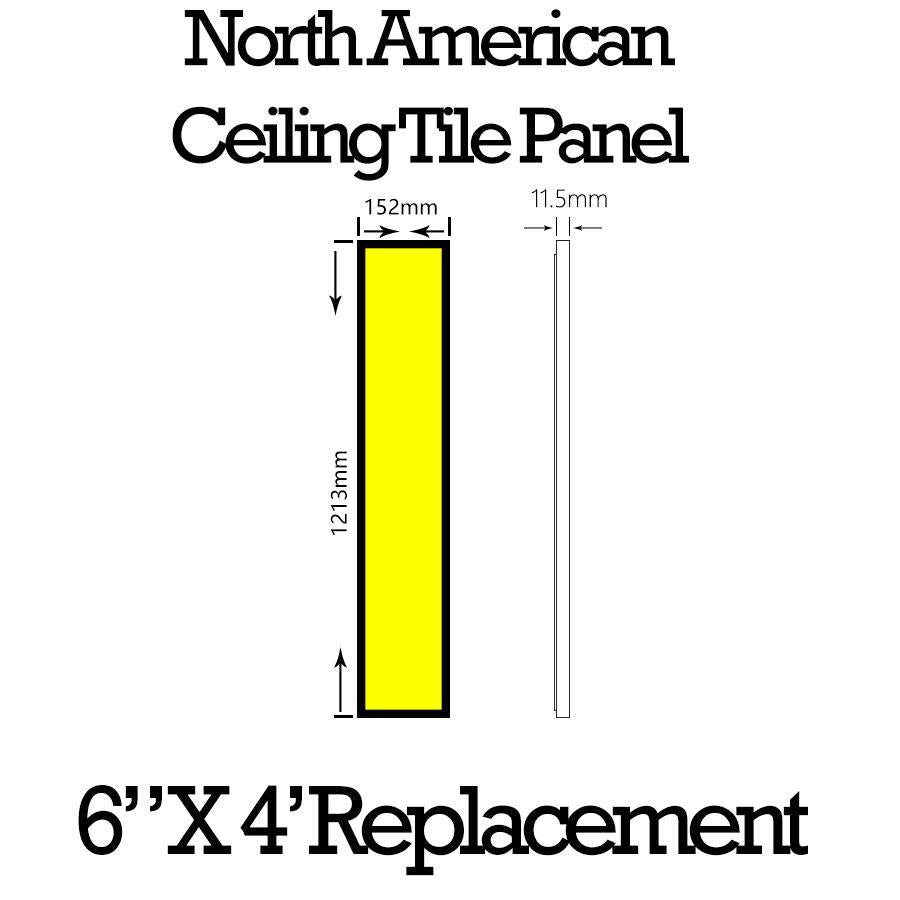

UPDATED PANEL FOR 2020 INCLUDING HIGHER OUTPUT AND MODIFIED PANEL SIZES INCLUDING TWO NEW SLIM PANELS - 6"X4' AND 1'X4' AND 2'X4'

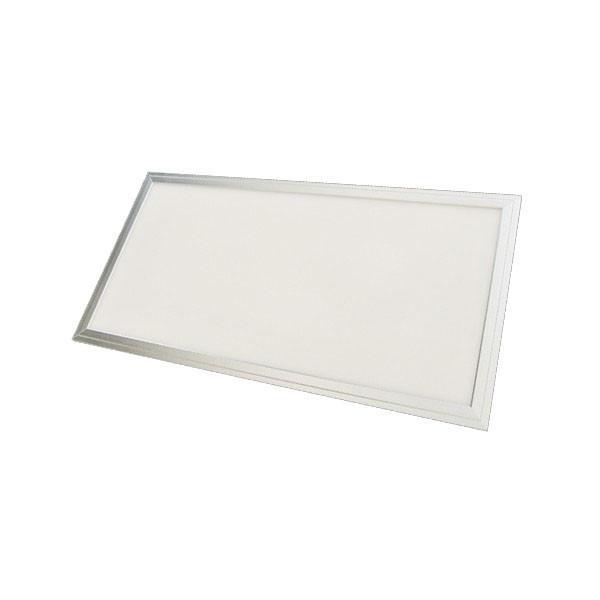

A highly durable, light-weight and slim 2' x 4' X 0.4" (603mm X 1213mm X 11.5MM) panel that is designed to fit into existing drop ceilings.
Bi-colour panels are typically stocked however the remaining items are non-stock. Please call to inquire about availability. Typical lead time is 4-6 weeks.
SPECIFICATIONS
| Product Type | : | 6"x4'Bi-Color 2600k - 6000k |
| Product Code | : | 24VWW26CW56601521213 |
| CRI | : | ≥95 |
| Kelvin | : | 2600-6000k |
| Mounting Type | : | Suspension Mount Bracket OR Recessed |
| Current, Rating | : | 2.92A / panel |
| Voltage | : | 24 VDC |
| Wattage | : | 36W / Channel 70W / Panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP50 |
| Lumens @ Full | : | 4200 |
| Lumen / Watt | : | 65-70 lm / w |
| Lifetime* | : | 30,000 hours |
| Number of Contacts | : | 3 |
| LED Type | : | 2835 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | - 40 C |
| Agency Ratings | : | UL - Pending, CE, RoHS |
| PCB Width | : | 8MM |
| Maximum Recommended Length | : | N/A |
| Beam Angle | : | 170 degree |
| Weight | : | 3.6 lbs |
