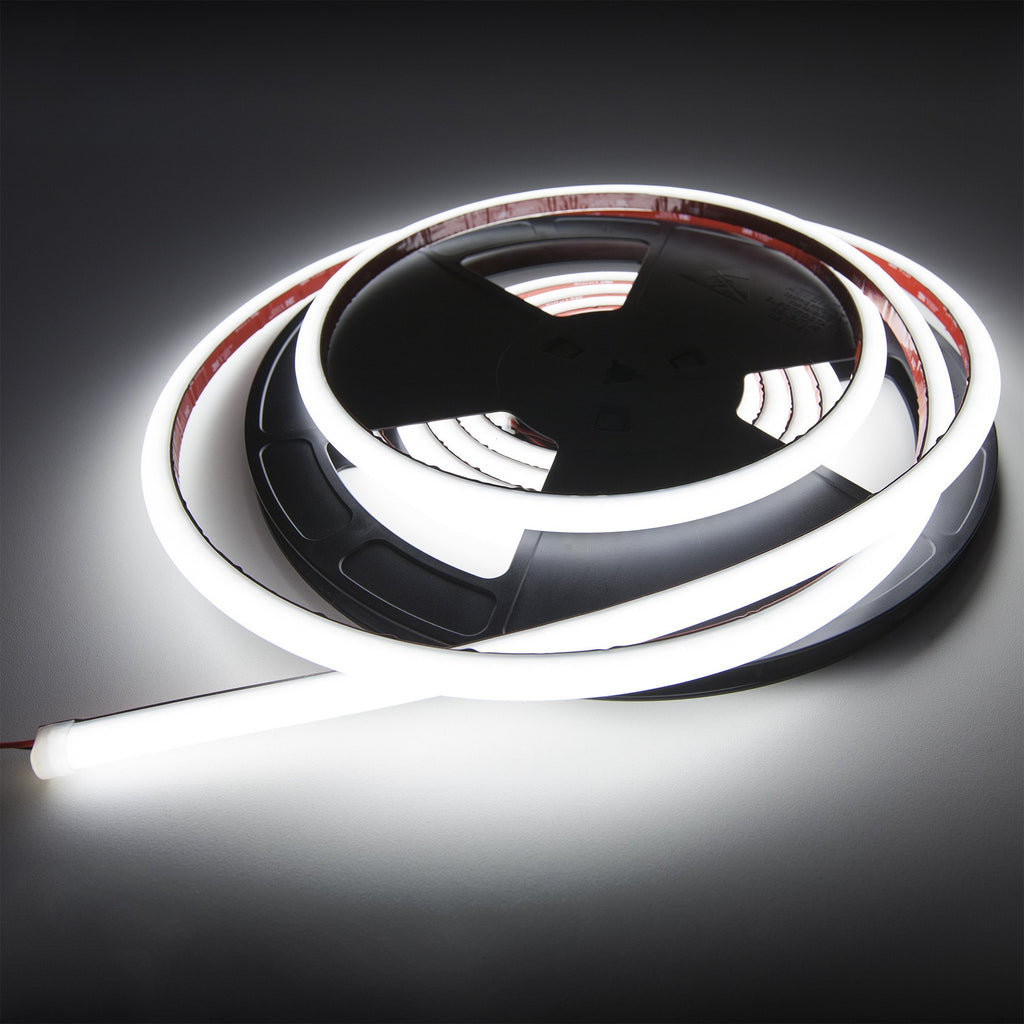

DiffuseFlex LED Neutral White (4100k) 10M
Pre-Diffused Flexible LED strips. You asked for it and now it's here! Tired of the pixelized look of
our classic FlexLED strips? Our DiffuseFlex LED is the solution! Beautiful uniform look provides seemless, even output across a full 10 or 5 meters. Customized lengths are available upon request. IP67 rated for outdoor use and 35,000 hour lifespan.
• Suitable for on-camera use, or anywhere a high-quality white light is required.
• High CRI (Colour Rendering Index) >90. No green spike or colour spectrum deficiencies.
• Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. • Waterproof must be mounted using silicone (not provided)
• Maximum recommended length in order to prevent line-loss is 10m (32')
• Controller, Power supply and Extension Cables sold separately
• Quantity Discounts and Custom Color Temperatures available. Please call to inquire.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
Product Type | : | White Only |
Product Code | : | DFLX-O24V-XXYY-140-10M |
CRI | : | ≥95 |
Kelvin | : | 2700k/3000k/4000k/5500k |
PCB Color | : | White |
Current, Rating | : | 0.832 A / meter |
Voltage | : | 24 VDC |
Wattage | : | 20 W / meter |
CC / CV | : | Constant Voltage |
IP Rating | : | IP65 |
Lumens @ Full | : | 1000lm ~ 1400lm / meter |
Lumen / Watt | : | N/A |
Lifetime* | : | 30,000 hours |
Cutting Length | : | 5 CM |
LED Quantity | : | 140 LED / meter |
Number of Contacts | : | 2 |
LED Type | : | 3528 |
Copper Quantity | : | 3 Oz. |
Temperature, Operating, Maximum | : | 70 C |
Temperature, Operating, Minimum | : | -40 C |
Agency Ratings | : | UL E489028, CE, RoHS |
PCB Width | : | 10 MM |
Maximum Recommended Length | : | 10 meters |
Viewing Angle | : | 180 |
Adhesion | : | VHB 5952 |
