FlexLED 70 Step-Up 24V (Angle Adjustable) Indoor Bare end wires RGB

I24VSURGB4805050
LED Tape
$191.27

Our step-up FlexLED product is specifically designed to allow for focusing of individual diodes to whichever angle you require.
This design allows for the LED to be focused in virtually any direction. Extremely versatile and unique to Moss LED.


Suitable for residential, television, industrial, and commercial applications
Indoor FlexLED strips have 3M 200MP double-sided tape on the back which makes installation as easy as peel n stick.
Each individual LED diode is adjustable to allow for unique focusing positions for each and every LED.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.



SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGB Step Up
Product Code : I24VSURGB4805050
CRI : N/A
Kelvin : N/A
PCB Color : White
Current, Rating : 0.6 A / meter
Voltage : 24 VDC
Wattage : 14.4 W / meter
CC / CV : Constant Voltage
IP Rating : IP20
Lumens @ Full : 1000 lm / meter
Lumen / Watt : 69.4
Lifetime* : 40,000 hours

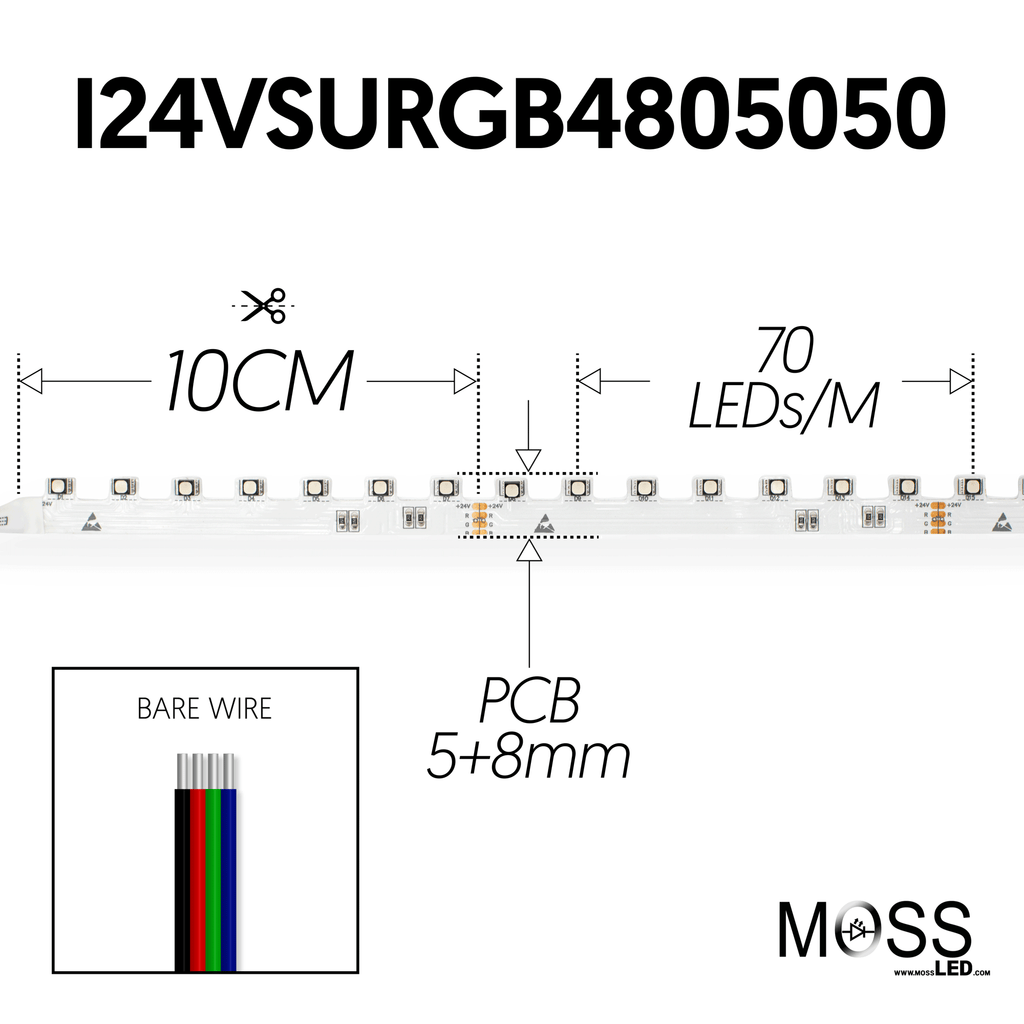

Cutting Length : 10CM
LED Quantity : 70 LED / meter
Number of Contacts : 4
LED Type : 5630
Copper Quantity : 2 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - pending, CE, RoHS
PCB Width : 5+8MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : 200MP 3M
