FlexLED 96 RGB + White AIO 24V 2700k Indoor Bare End Wires
I24VRGBW274805060
LED Tape
$245.44
RGB+White All-In-One Diode in High CRI
This product is designed for anywhere high quality light and the ability to change colour is required. It's cutting length of 6.25CM is the closest cutting length for a 24V RGBW product.
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips haveTESA 4965 double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + Warm White |
| Product Code | : | I24VRGBW304805050 |
| CRI | : | 95 |
| Kelvin | : | 2700k +/-100k |
| PCB Color | : | White |
| Current, Rating | : | 0.96 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 23 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1500 lm / meter |
| Lumen / Watt | : | 65 |
| Lifetime* | : | 50,000 hours |

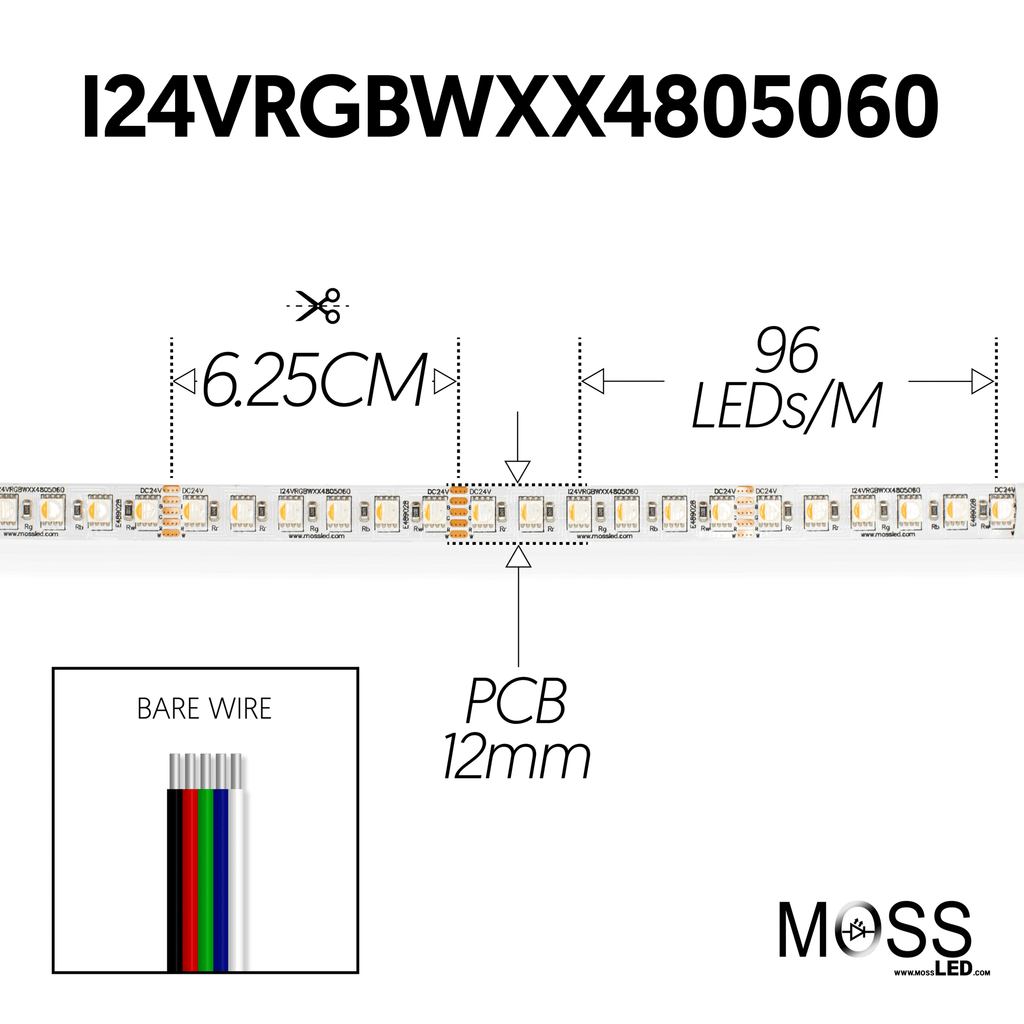

| Cutting Length | : | 6.25CM |
| LED Quantity | : | 96 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 5060 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 7 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | TESA 4965 |
| Wavelength A Red | : | 620~625nm |
| Wavelength B Green | : | 515~520nm |
| Wavelength C Blue | : | 460~465nm |
