FlexLED Bi-Colour 3000K - 5600K 24V (CCT Adjustable) 196 LED/meter Indoor Bare end wires

I24VBC30569803528
LED Tape
$217.98
$217.98

Color Temperature adjustable high density FlexLED Tape

2700K - 5600K CRI <95

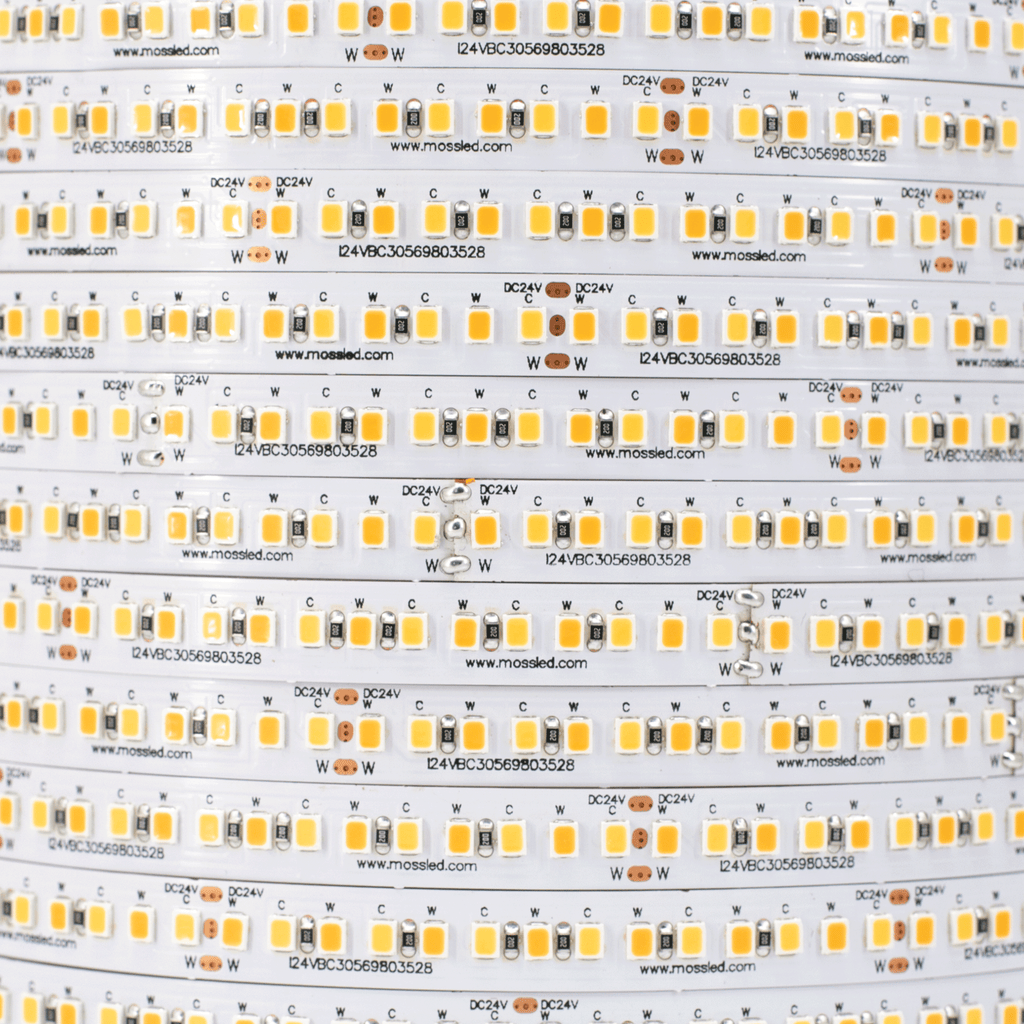

Two versions of our bi-color FlexLED are now available.  120 LED/meter (12MM Width) standard as well as 196 LED/meter (10MM Width) high output version.  The 196 LED/meter is ideally suited for areas where high output in a very tight space is required.  The 196 LED/meter is designed to be installed onto a metal heat sink for longevity purposes.  The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.

Both versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Single bin LED chip ensures CCT accuracy within +/- 100k.

TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick.  When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.


Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available.  Please contact us for specifics.

For specifications on Weatherproof and Waterproof product please download specifications sheet below.

SPECIFICATIONS - INDOOR PRODUCT

Product Type : Bi-Color 196
Product Code : I24VBC27569803528
CRI : 95
Kelvin : 2700k - 5600k
PCB Color : White
Current, Rating :  1.4 A / meter
Voltage : 24 VDC
Wattage :  33.6 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 2700K: 1400lm/meter - 5600k: 1700lm/meter - 3,100 lm/meter combined
Lumen / Watt :  94
Lifetime* :  30,000 hours

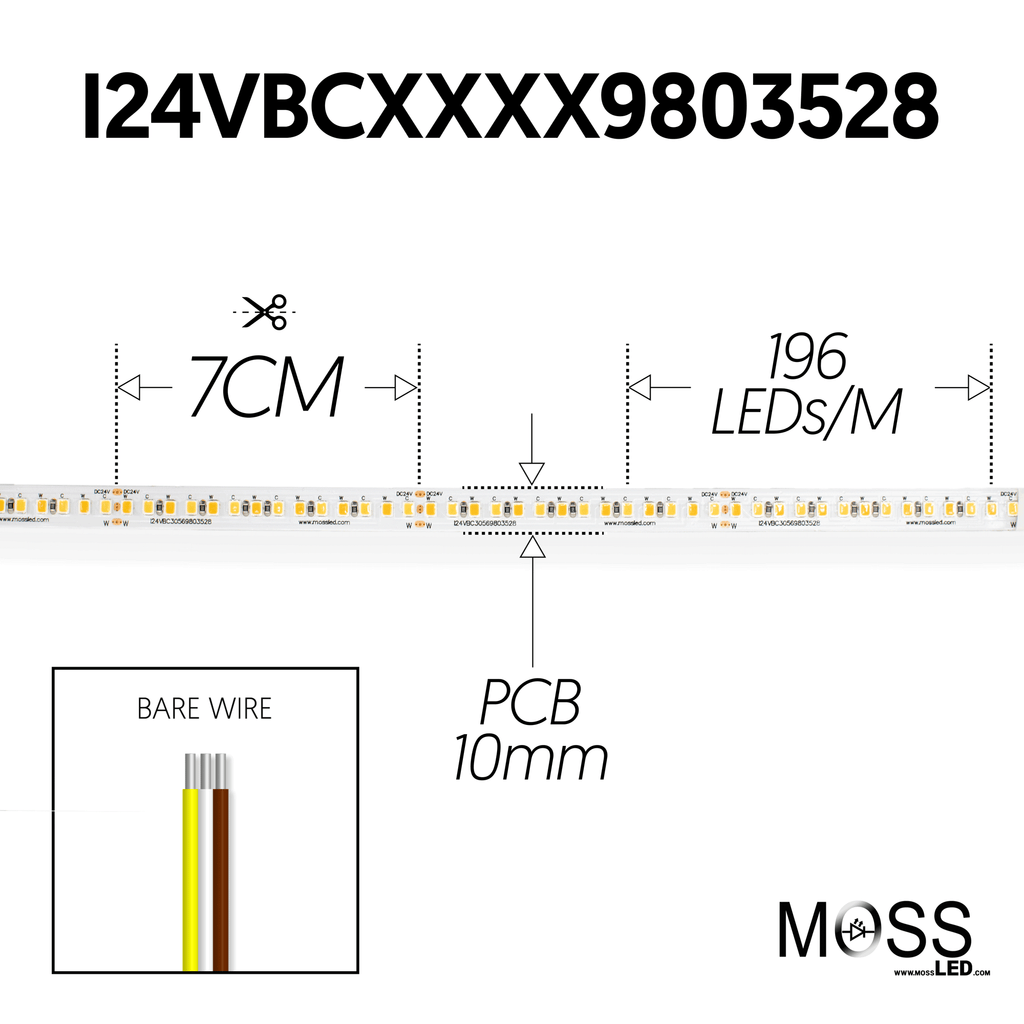

Cutting Length :  7.143CM
LED Quantity :  196 LED / meter
Number of Contacts : 3
LED Type : 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 10MM
Maximum Recommended Length :  5 meters
Viewing Angle : 120 degree
Adhesion : TESA 4965
