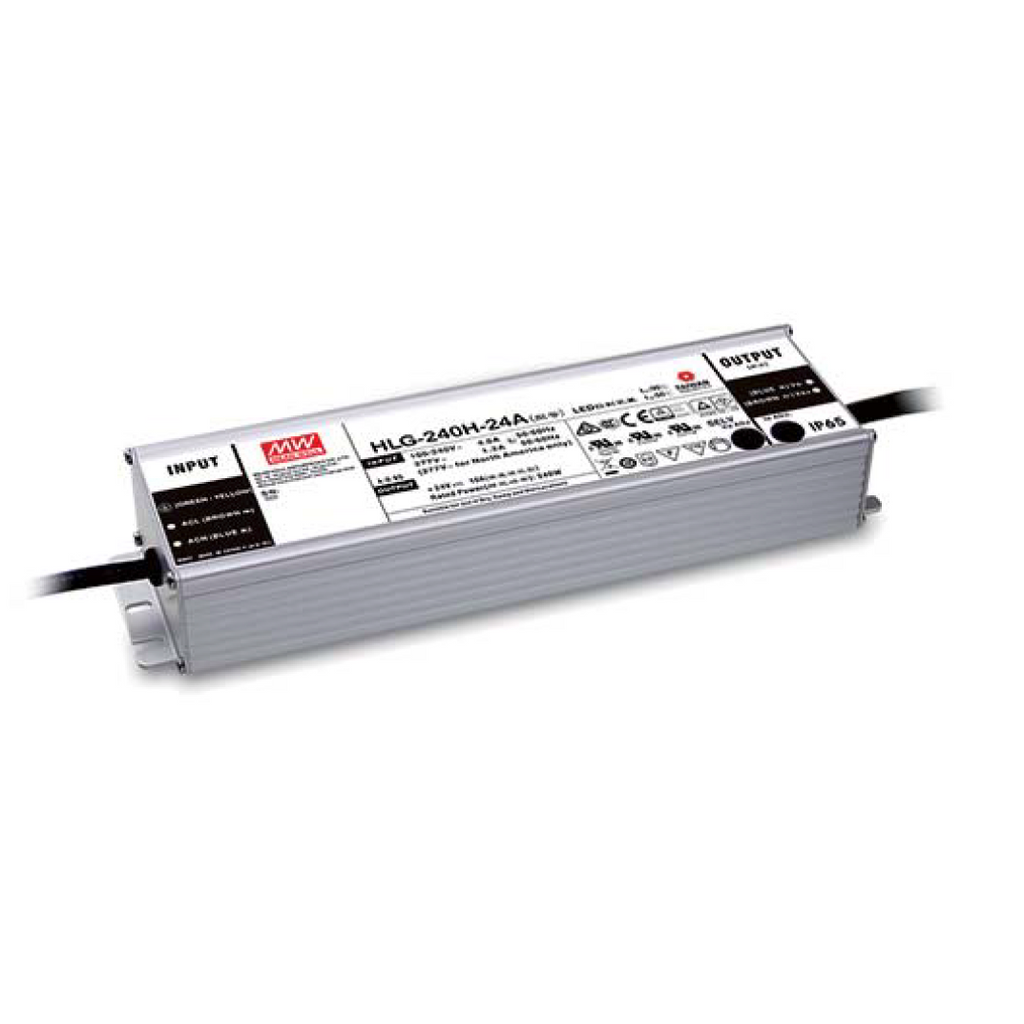

HLG 12VDC- 240W Power Supply

HLG-240H-12A
Power Supplies
$107.02
$107.02

HLG Family of Power Supplies. Our flagship LED drivers. Extremely reliable and robust LED power supply designed for use with all LEDs including Constant Current and Constant Voltage products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. IP65 rated for outdoor use. Safe, powerful, and reliable are the cornerstones of our HLG line of power supplies from Mean Well. Amazing 7 year warranty. Output 120 - 600W Class I

Specifications

Technical data
Brand
Mean Well
Item number
HLG-240H-12
Series
HLG-240H
Description
AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC;
Output 12Vdc at 16A; IP67; Cable output
Application
ITE EN/UL/IEC 60950
LED EN 61347
Technology
AC/DC
Constant Current C.C.
Constant Voltage C.V.
Power Format
Box Type - Enclosed
Output Power (W)
240
Output Voltage (V)
12
Output Current (A)
16
Input Voltage (V)
90 - 305
Universal Input 110/230V
IP Rating
IP20
IP21
IP30
IP40
IP42
IP50
IP64
IP65
IP66
IP67
Width (mm)
68
Height (mm)
38.8
Depth (mm)
220
Dimming Technology
No Dimming



  1. Specification Sheet - HLG-40H

  2.   Specification Sheet - HLG-60H
  3.  Specification Sheet - HLG-80H
  4.   Specification Sheet - HLG-100H
  5.   Specification Sheet - HLG-120H
  6.   Specification Sheet - HLG-150H
  7.   Specification Sheet - HLG-185H
  8.   Specification Sheet - HLG-240H
  9.   Specification Sheet - HLG-320H
  10.   Specification Sheet - HLG-480H
  11.   Specification Sheet - HLG-600H
