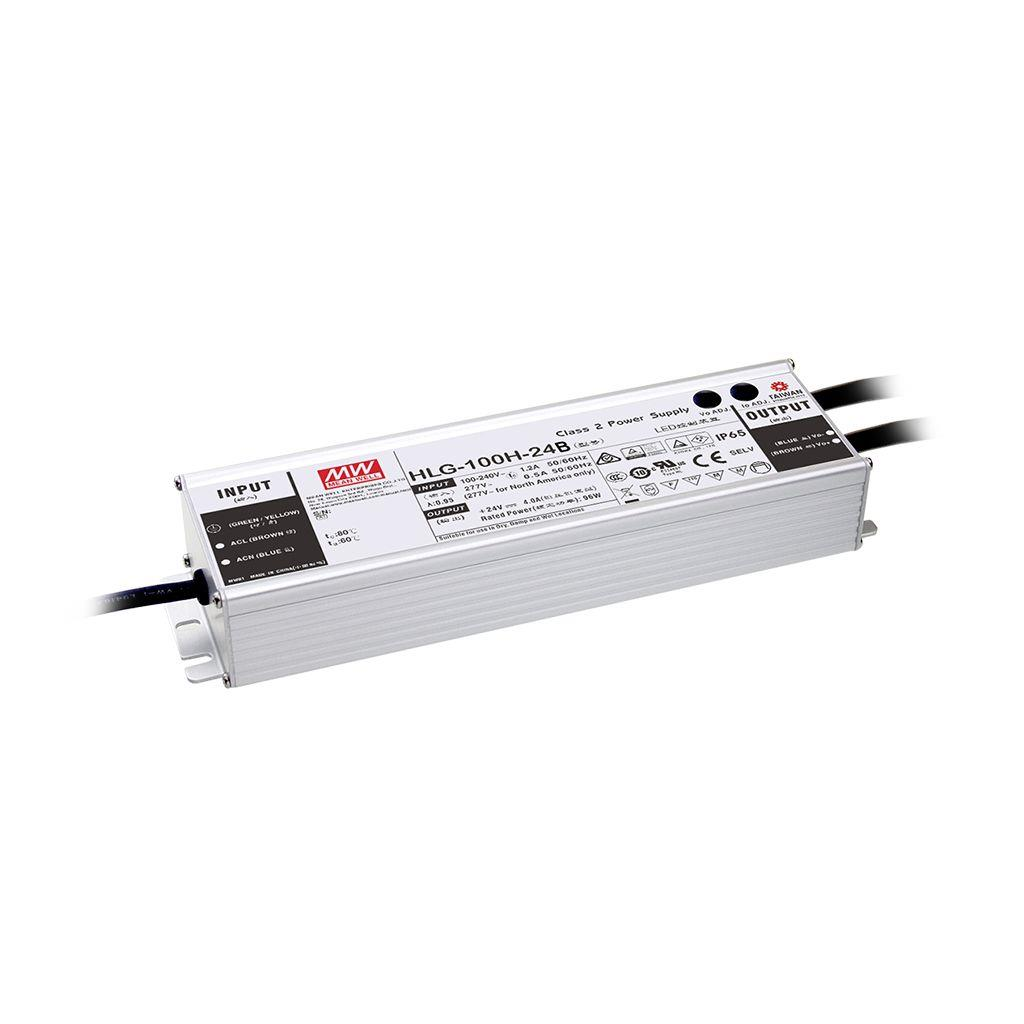

HLG IP65 Fanless & Metal Housed Power Supplies 24VDC 100W (MWL-HLG100H24A)

HLG IP65 Fanless & Metal Housed Power Supplies 24VDC 100W (MWL-HLG100H24A)

MWL-HLG100H24A
Power Supplies
$99.80
Tags: / / / / / / /
Description


HLG Family of Power Supplies. The best LED Drivers.

Extremely reliable and robust LED power supply designed for use with all LEDs including Constant Current and Constant Voltage products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. IP65 rated for outdoor use. Safe, powerful, and reliable are the cornerstones of our HLG line of power supplies from Mean Well. Amazing 7 year warranty.

  • Output 60 - 600W
  • Class I

Ships in 1 - 2 Business Days

  • Specifications
  • Downloads
Model : HLG-120H-24A HLG-150H-24A HLG-185H-24A HLG-240H-24A HLG-320H-24A HLG-480H-24A HLG-600H-24A
Current (A) : 5 A 6.25 A 7.8 A 10 A 13.34 A 20 A 25 A
Output Power (W) : 120 W 150 W 185 W 240 W 320 W 480 W 600 W
Agency Approvals : UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB UL/CUL/CE/TUV/CB
Size (millimeters) : 220 X 68 X 38.8 228 X 68 X 38.8 228 X 68 X 38.8 244 X 68 X 38.8 252 X 90 X 43.8 262 X 125 X 43.8 280 X 144 X 48.5
Ripple & Noise (mV p-p) : 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 150mVp-p
Load Regulation () : ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Line Regulation () : ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency : 93% 93% 93.5% 92.5% 94% 94% 95%
Frequency Range : 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : <0.75ma 277vac="" td=""> <0.75ma 277vac="" td=""> <0.75ma 277vac="" td=""> <0.75ma 277vac="" td=""> <0.75ma 277vac="" td=""> <0.75ma 277vac="" td=""> <0.75ma 277vac="" td="">
Protections: : short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp short circuit, over voltage, overload, over current, over temp
AC Input : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Housing : Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing
Ingress Protection Rating : IP 65 IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Class : TYPE HL - Class I TYPE HL - Class I TYPE HL - Class I TYPE HL - Class I TYPE HL - Class I TYPE HL - Class I TYPE HL - Class I
Indicator : None None None None None None Yes
Voltage Adjustment Range : 22 ~ 27V 22 ~ 27V 22 ~ 27V 22.4 - 25.6V 21 ~ 26V 20.4 ~ 25.2V 20.4 ~ 25.2V
Output Connector Type : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Current Adjustment Range : 2.5 ~ 5A 3.8 ~ 6.3A 3.9 ~ 7.8A 5 ~ 10A 6.67 ~ 13.34A 10 ~ 20A 12.5 ~ 25A
Output Polarity : Refer to Specification Sheet Refer to Specification Sheet Refer to Specification Sheet Refer to Specification Sheet Refer to Specification Sheet Refer to Specification Sheet Refer to Specification Sheet
Input Connector : Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type : AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply
MFR Product Family : HLG HLG HLG HLG HLG HLG HLG
Operating Temperature : -40C to 80C -40C to 90C -40C to 90C -40C to 90C -40C to 90C -40C to 90C -40C to 90C
Power Supply Color : Silver Silver Silver Silver Silver Silver Silver
Wiring Color Codes Output : Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU



  1. Specification Sheet - HLG-40H

  2.   Specification Sheet - HLG-60H
  3.  Specification Sheet - HLG-80H
  4.   Specification Sheet - HLG-100H
  5.   Specification Sheet - HLG-120H
  6.   Specification Sheet - HLG-150H
  7.   Specification Sheet - HLG-185H
  8.   Specification Sheet - HLG-240H
  9.   Specification Sheet - HLG-320H
  10.   Specification Sheet - HLG-480H
  11.   Specification Sheet - HLG-600H
