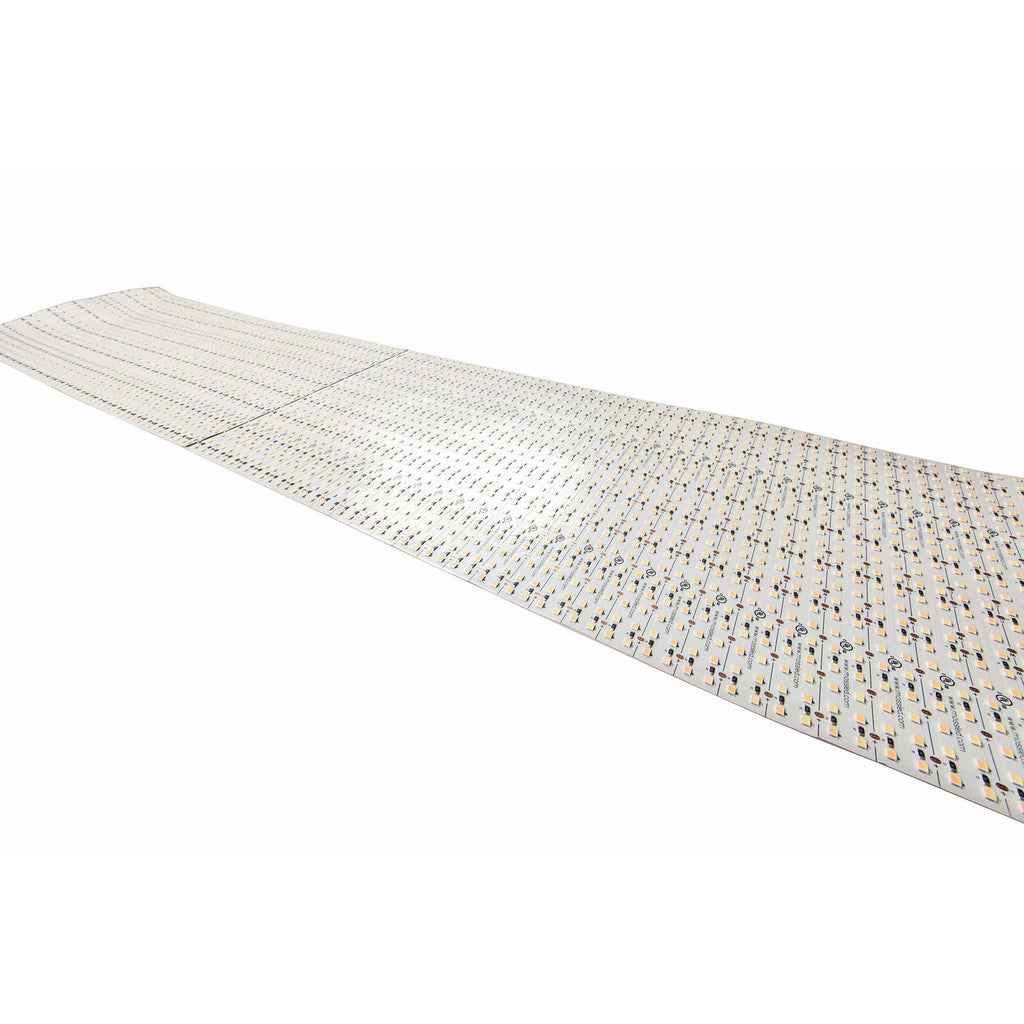

ML24 Panel FlexLED Bi-Colour Joiner Panel with Quick Connect - Half Panel Size

24VML24BCJOINERQC-HALF
LED Fixture
$9.29
MultiLine 24-Way FlexLED Panel
Our most high density panel. Extremely bright. Fantastic traditional fluorescent replacement.
Suitable for residential, television, industrial, and commercial applications

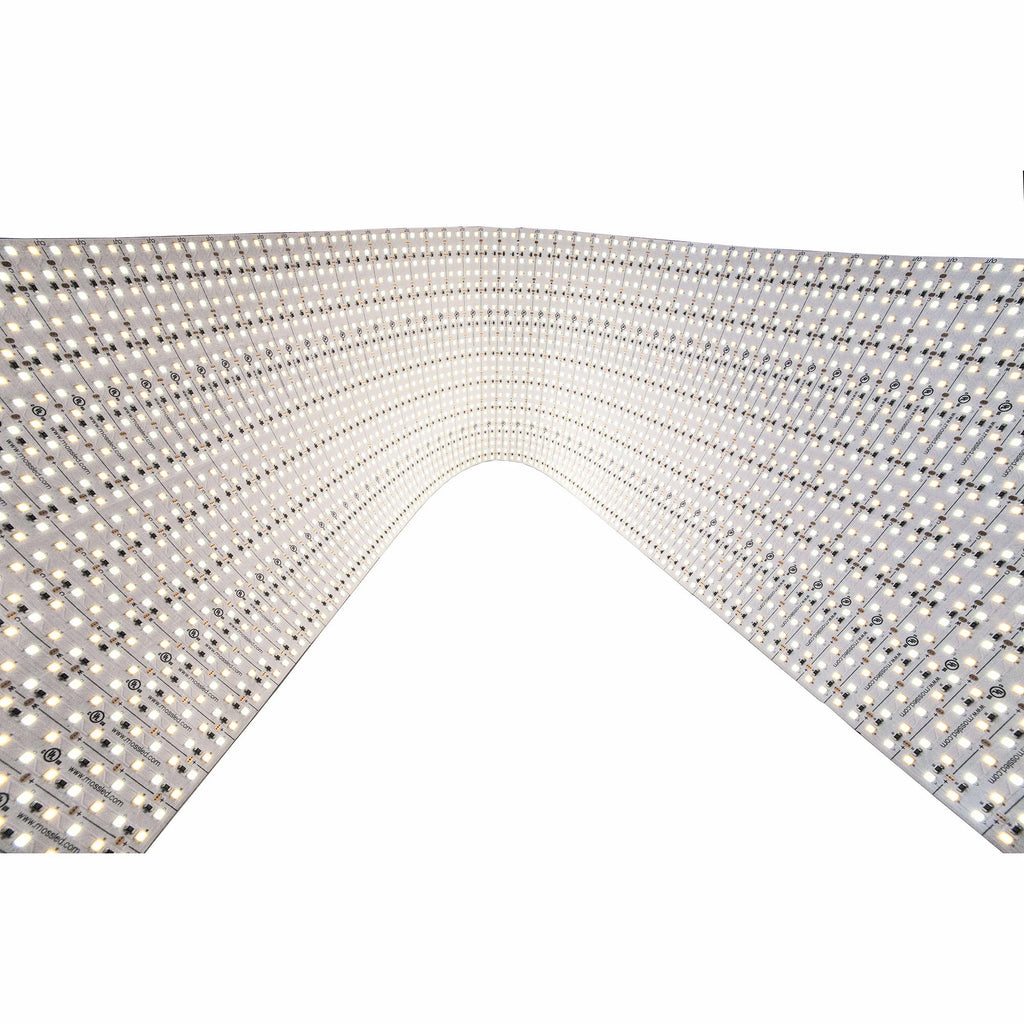

Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
For applications where color and intensity output consistency is required
3M double-sided tape on the back makes installation as easy as peel n' stick.
Controller, Power supply and Extension Cables sold separately
Custom Color Temperatures available. Please call to inquire.

SPECIFICATIONS - INDOOR PRODUCT

Product Type : ML24 Bi-Colour 27k - 56k
ML24 3000k
ML24 5600k
Product Code : 24VML24BC27561000MMW 24VML24T301000MMW 24VML24D561000MM
CRI : 95 95 ≥95
Kelvin : 2700k - 5600k 3000k 5600k
PCB Color : White White White
Current, Rating : 9.67 A / 1 meter panel 9.67 A / 1 meter panel 9.67 A / 1 meter panel
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 232 W / panel 232 W / panel 232 W / panel
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lux @ Full : 28,010 27,775 28,250
FC @ 36" : 658 644 672
Lifetime* : 30,000 hours  30,000 hours 30,000 hours
Cutting Length : 1.6CM 1.6CM 1.6CM
LED Quantity : 2,880 / panel 2,880 / panel 2,880 / panel
Number of Contacts : 3 3 3
LED Type : 2835 2835 2835
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 240 MM 240 MM 240 MM
Maximum Recommended Panels : 2 X 1 Meter Panels 2 X 1 Meter Panels 2 X 1 Meter Panels
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : 3M 300MP 3M 300MP 3M 300MP
