Sold Out

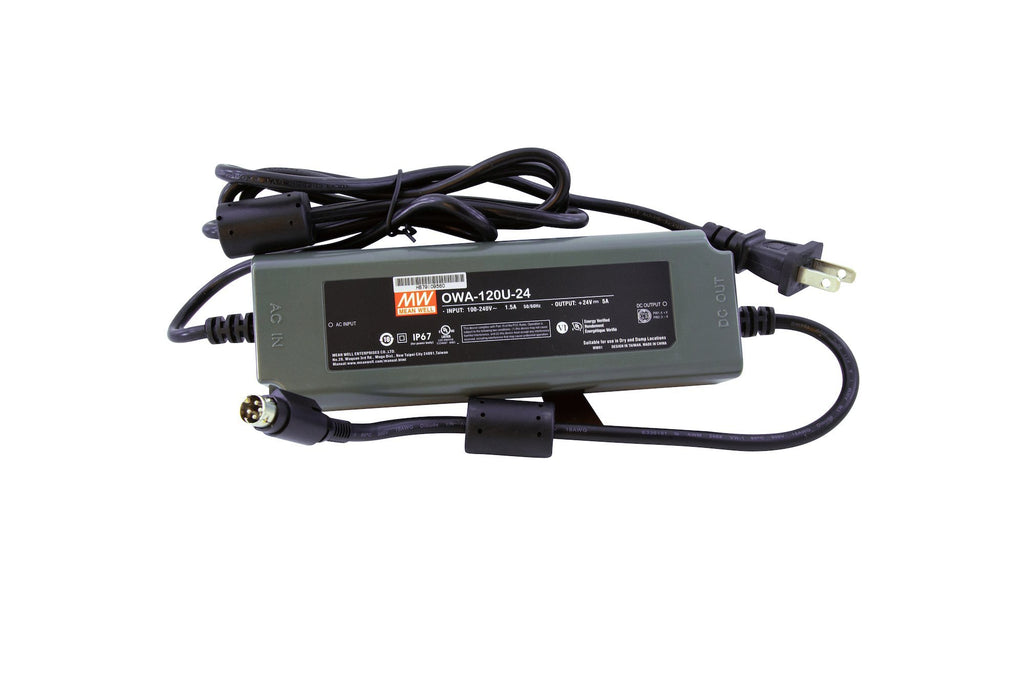

OWA IP67 Power Supplies 24VDC 120 Watt MWL-OWA120U24R7B

MWL-OWA120U24R7B
Power Supplies
$98.37

Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class II & Class 2 safety ensures short-circuit, overload, and over-voltage protection. Safe, powerful, and reliable are the cornerstones of our the OWA line of power supplies from Mean Well.  Comes with a standard 2-prong North American input power plug.

Output plug for 60W version is a standard DC Barrel Connector (P1M)
Output plug for 90W version is standard DC Barrel Connector (P1M) or R7B locking 4-pin DIN connector
Output plug for 120W version is a locking 4-pin DIN connector (R7B)

  • Output 60W / 90W / 120W
  • Class II
  • Class 2 (60W @ 12V & 60W @ 24V & 90W @ 24V)
  • Fanless Design
  • UL Listed, suitable for dry & damp locations
  • 5 year warranty
  • 91% high efficiency
  • Mounting Holes

Specifications

T



echnical data

Brand
Mean Well
Item number
OWA-120E-24
Series
OWA-120E
Description
AC-DC Single output moistureproof adaptor with PFC; Input 2 pin Euro plug; Output 24VDC at 5A with XLR 4P plug; Class II
Application
Household EN 60335
Technology
AC/DC
Power Format
Box Type - Enclosed
Output Power (W)
120
Output Voltage (V)
24
Output Current (A)
5
Input Voltage (V)
180 - 264
IP Rating
IP20
IP21
IP30
IP40
IP42
IP50
IP64
IP65
IP66
IP67
Width (mm)
63
Height (mm)
37.5
Depth (mm)
191
Dimming Technology
No Dimming



  1. Specification Sheet - 60 Watt

  2.  Specification Sheet - 90 Watt
  3.  Specification Sheet - 120 Watt
