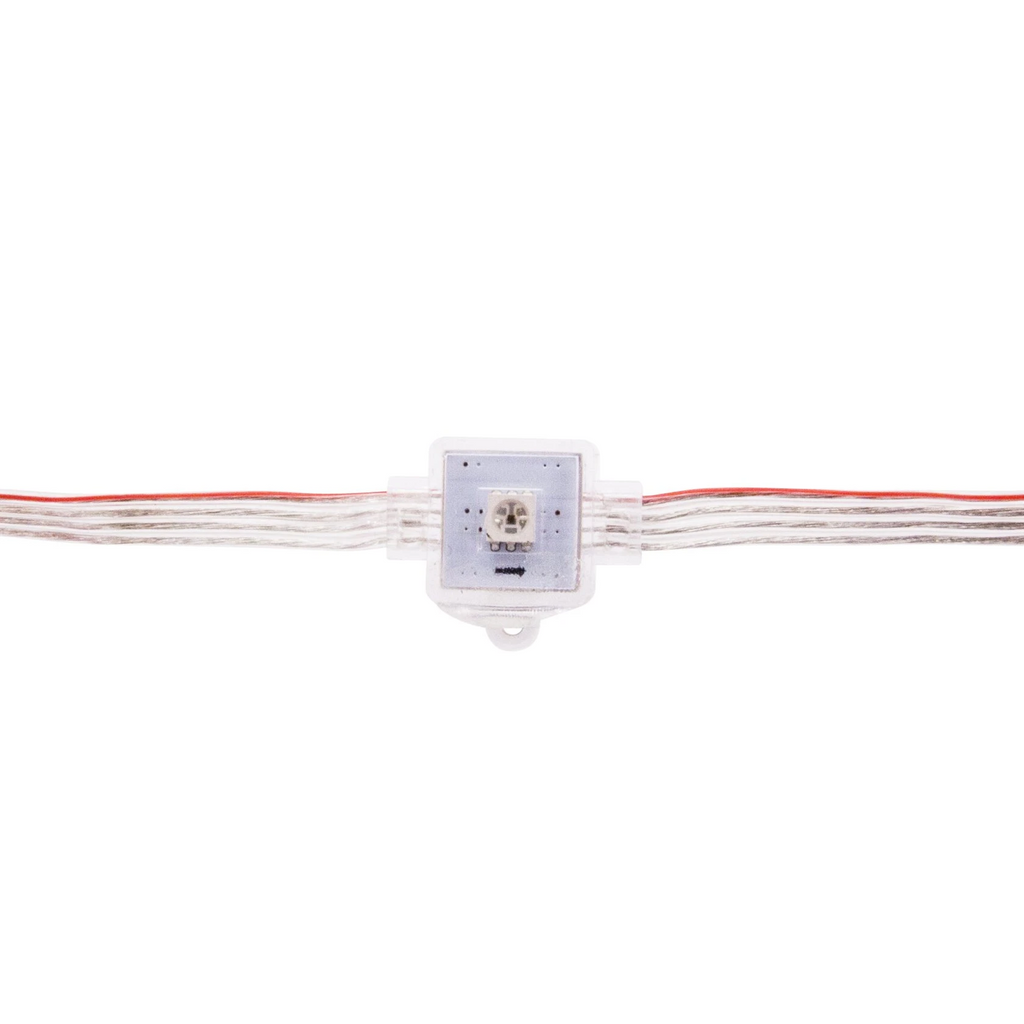

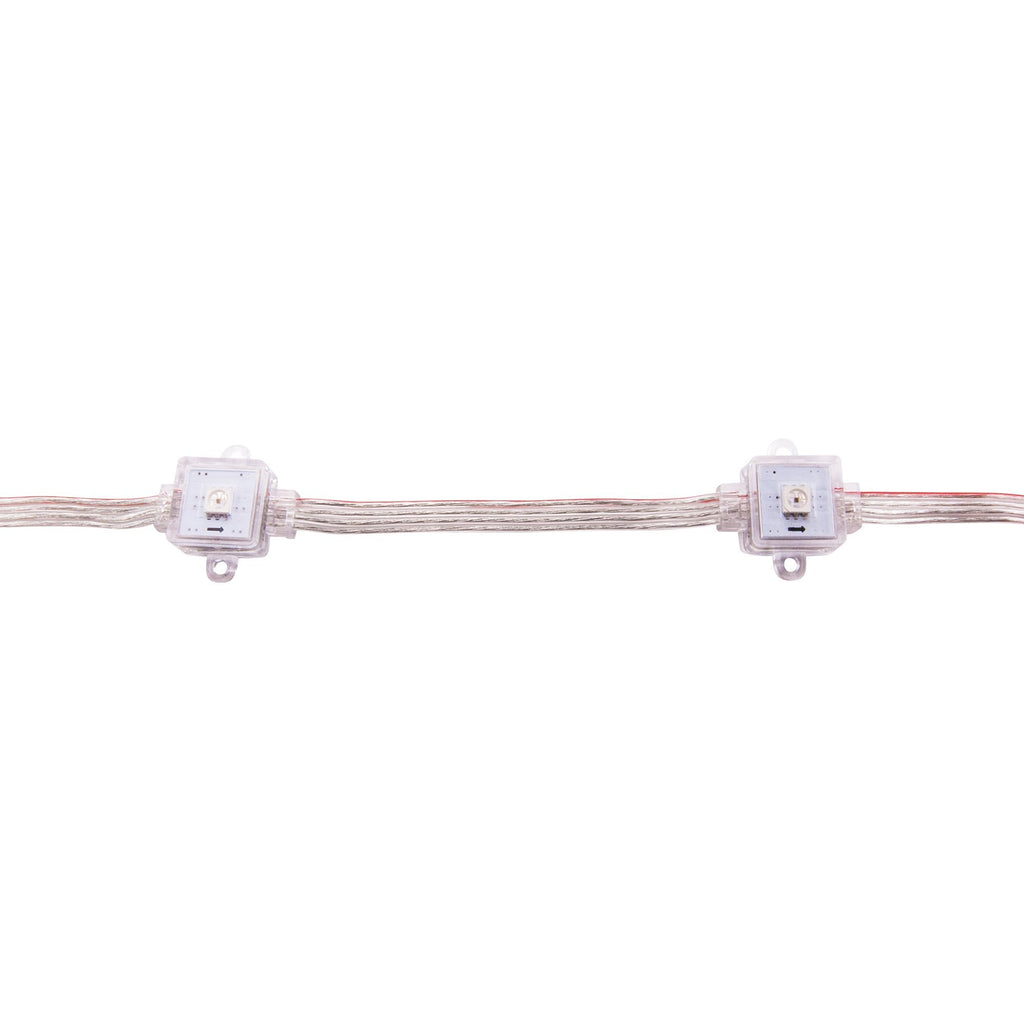

Pixel Dots 5v Cool White, Warm White, Amber Raw Bare End Wires O5VMOD5050D4PRGBAPA102
O5VMOD5050D4PRGBAPA102
LED Tape
$2.45
Brand New for 2018 - Individual controlled pixel dots.
5 Volt, APA 102 Chips. Compatible with our LXFXBX & PixlArt416 controllers.
SPECIFICATIONS - WEATHERPROOF (IP66) PRODUCT
| Product Type | : | Cool White, Warm White, Amber Raw Pixel Module |
| Product Code | : | O5VMOD5050D4PDWCAAPA102 |
| CRI | : | N/A |
| Kelvin | : | TBD |
| PCB Color | : | White |
| Current, Rating | : | 0.06A / Pixel |
| Voltage | : | 5 VDC |
| Wattage | : | 0.3 W / Pixel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP66 |
| Lumens @ Full | : | N/A |
| Lumen / Watt | : | N/A |
| Lifetime* | : | 30,000 hours |
| Pixel Pitch | : | 3.15" / 8CM |
| LED Quantity | : | 1 LED |
| Number of Contacts | : | 4 |
| LED Type | : | 5050 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | CE, RoHS |
| Dimensions | : | 18MM Diameter |
| Maximum Recommended Length | : | 300 Pixel Dots |
| Viewing Angle | : | 120 degree |
| Adhesion | : | Mechanical Fastener Required |
RoHS Test Report
