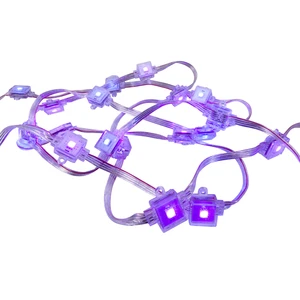

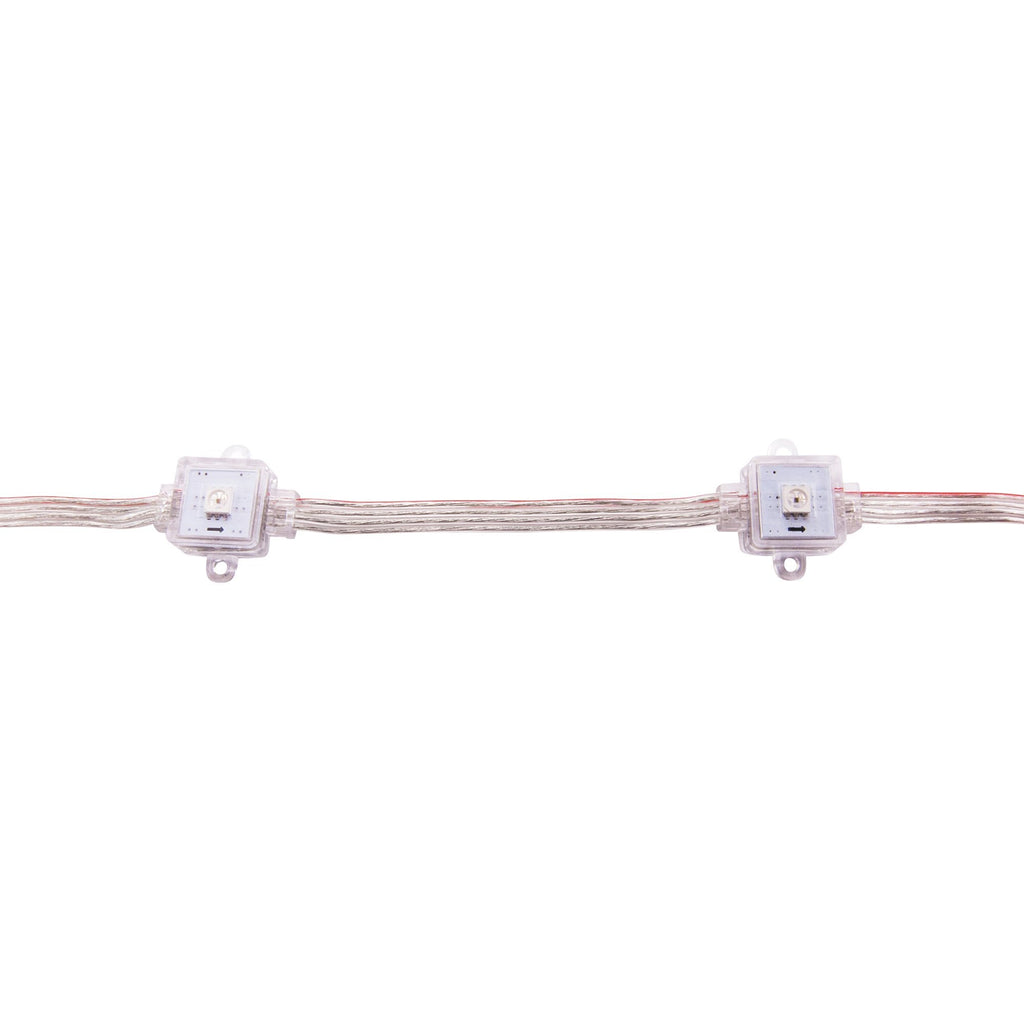

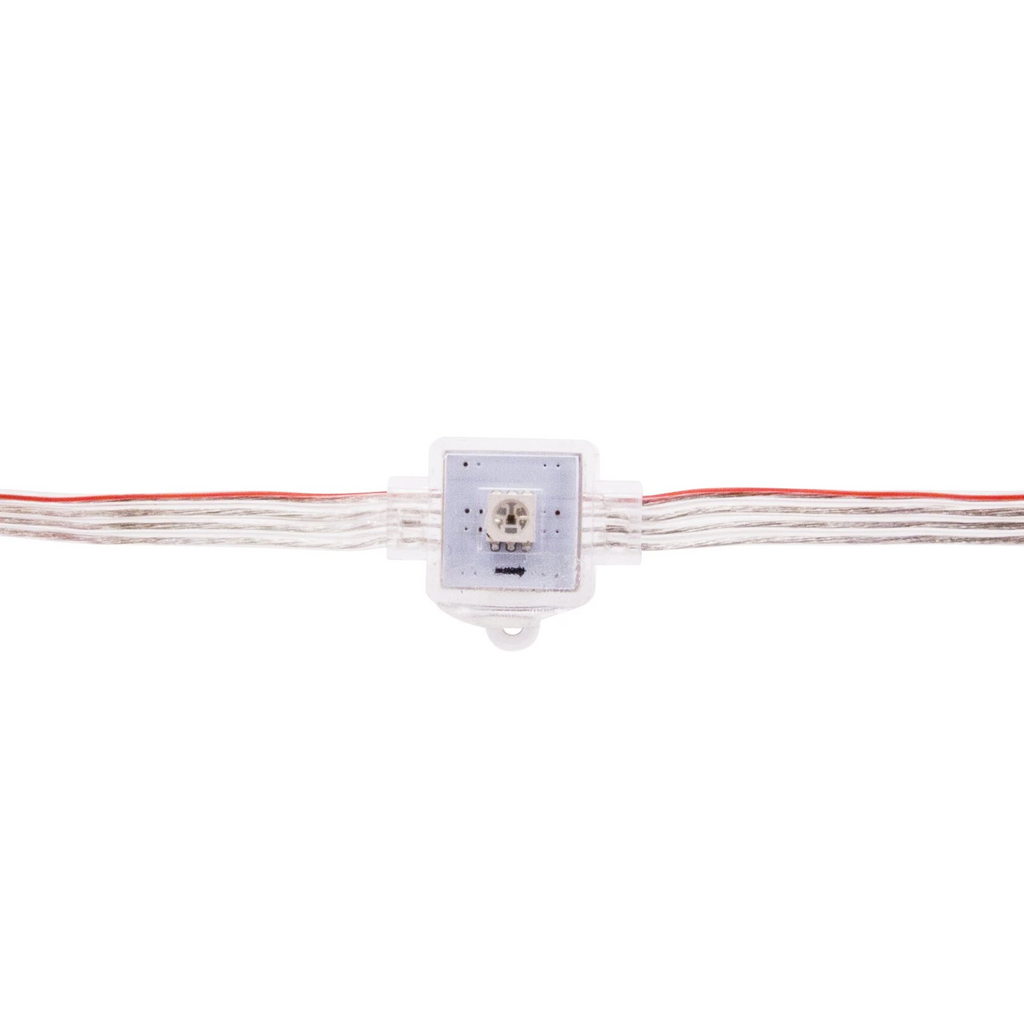

Pixel Dots RGB Raw Bare End Wires

O5VMOD5050D4PRGBAPA102
LED Tape
$2.45
$2.45

Brand New for 2018 - Individual controlled pixel dots.

5 Volt, APA 102 Chips.  Compatible with our LXFXBX & PixlArt416 controllers.



SPECIFICATIONS - WEATHERPROOF (IP66) PRODUCT

Product Type : RGB Raw Pixel Module
Product Code : O5VMOD5050D4PRGBAPA102
CRI : N/A
Kelvin : N/A
PCB Color : White
Current, Rating : 0.06A / Pixel
Voltage : 5 VDC
Wattage : 0.3 W / Pixel
CC / CV : Constant Voltage
IP Rating : IP66
Lumens @ Full : N/A
Lumen / Watt : N/A
Lifetime* : 30,000 hours
Pixel Pitch : 3.15" / 8CM
LED Quantity : 1 LED
Number of Contacts : 4
LED Type : 5050
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : CE, RoHS
Dimensions : 18MM Diameter
 Maximum Recommended Length : 300 Pixel Dots
Viewing Angle : 120 degree
Adhesion : Mechanical Fastener Required
