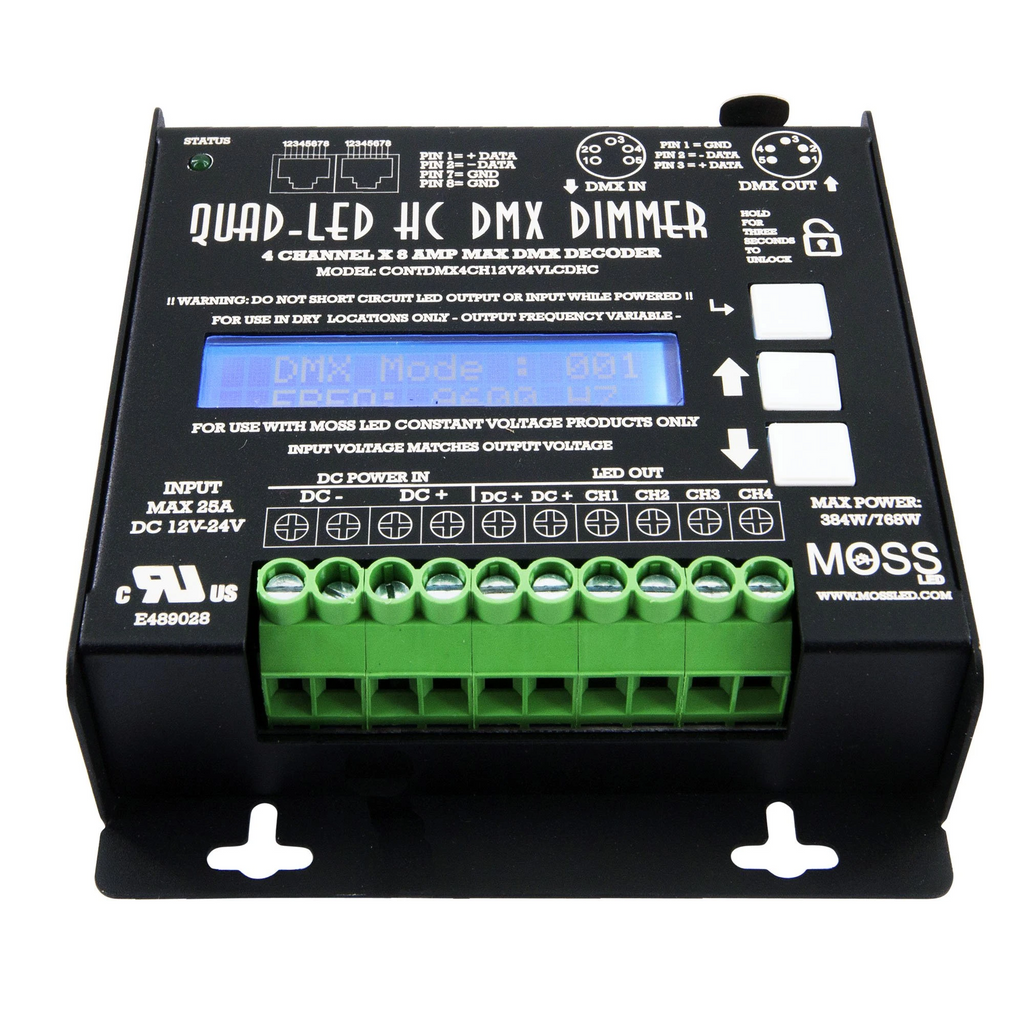

Quad-LED High Current DMX - 4 Channel Dimmer

CONTDMX4CH12V24VLCDHC
Dimmers
$143.30
$143.30

This dimmer can be used with all of our 4 channel, 3 channel, 2 channel, and 1 channel FlexLED Tape products and Modules This unit converts DMX-512/1990 standard digital signal into four dimmable channels. Uses RJ45 Ethernet or 3-pin XLR connectors to control LEDs via any lighting console or through computer software. Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape. LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.

TECHNICAL PARAMETERS

Output Current (A)

:

4 CH @ 10A/CH = Max 40A (4 CH @ 8A/CH = Max 25A for UL Standards)

Output Power (W)

:

480W @ 12V / 960W @ 24V (384W @ 12V / 678W @ 24V for UL Standards)

Supply Voltage

:

DC12V - DC24V

Size (inches)

:

L 4.8” x W 4.2” x H 1.2”

Working Temperature

:

-0°C to + 70 °C

Bit Rate

:

8 Bit

Weight

:

400g

IP Rating

:

IP40

PWM Frequency

:

2400Hz / 4800Hz / 9600Hz

IP Rating

:

IP40
