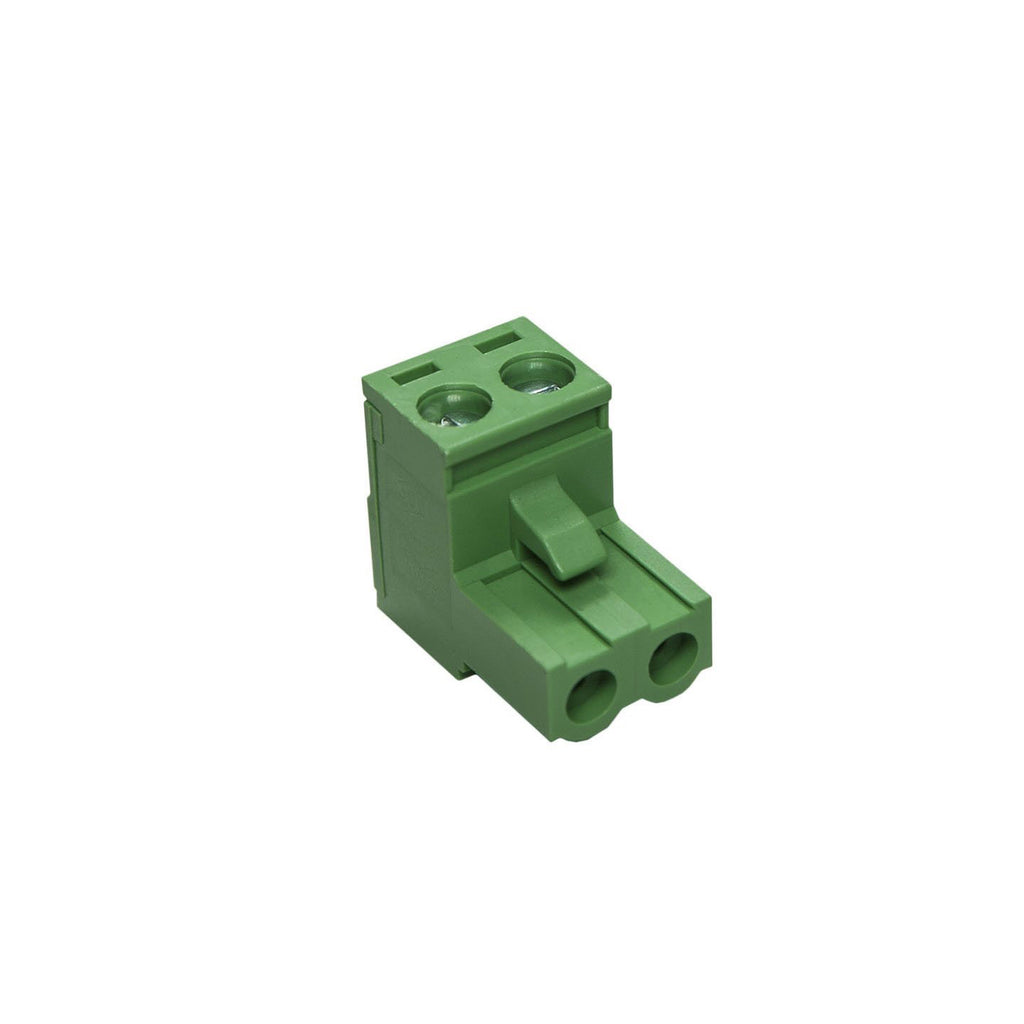

Terminal Block - Pluggable 2 Position Female

2POSTRMBLKFEM
Connectors
$1.32
$1.32

Position Terminal Blocks

Extremely useful terminal blocks. Available in 2 position, 3 position, 4 position, 5 position, 6, and 7 positions. (Sold individually)

  • Quick & Convenient Connection of Wires
  • Requires flat-head screw driver for assembly
  • Pluggable version




SPECIFICATIONS

Max Voltage (V) : 320 V
Max Current Per Pin (A) : 15 A (UL Rating) / 20A (IEC Rating)
AWG : 28 AWG to 14 AWG
Agency Approvals : CE/ROHS/cUL
Size (MM) : Various
Housing : Polyamide 66, 94-V2 grade
Screw : Plated-Steel
Max Ambient Temp : -40 ~ 105 C
Screw Type : Flat-Head M3
Pitch (MM) : 5.08MM



  1.  Terminal Block Specification Sheet
